Mylar bags (metalized polyethylene terephthalate or PET film) are widely used for packaging due to their durability, barrier properties, and aesthetic appeal. However, die cutting—a critical step in shaping these bags—can significantly impact the printing surface area, influencing design flexibility, material efficiency, and final product quality. This article explores the relationship between die cutting and printing surface area, along with strategies to optimize both.

1. Understanding Die Cutting and Its Impact

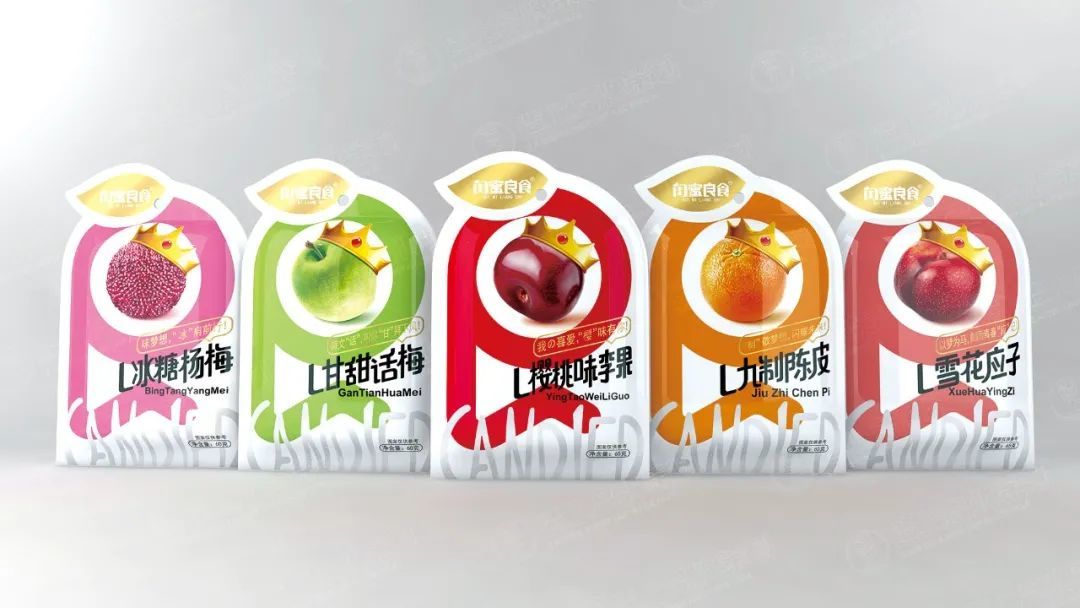

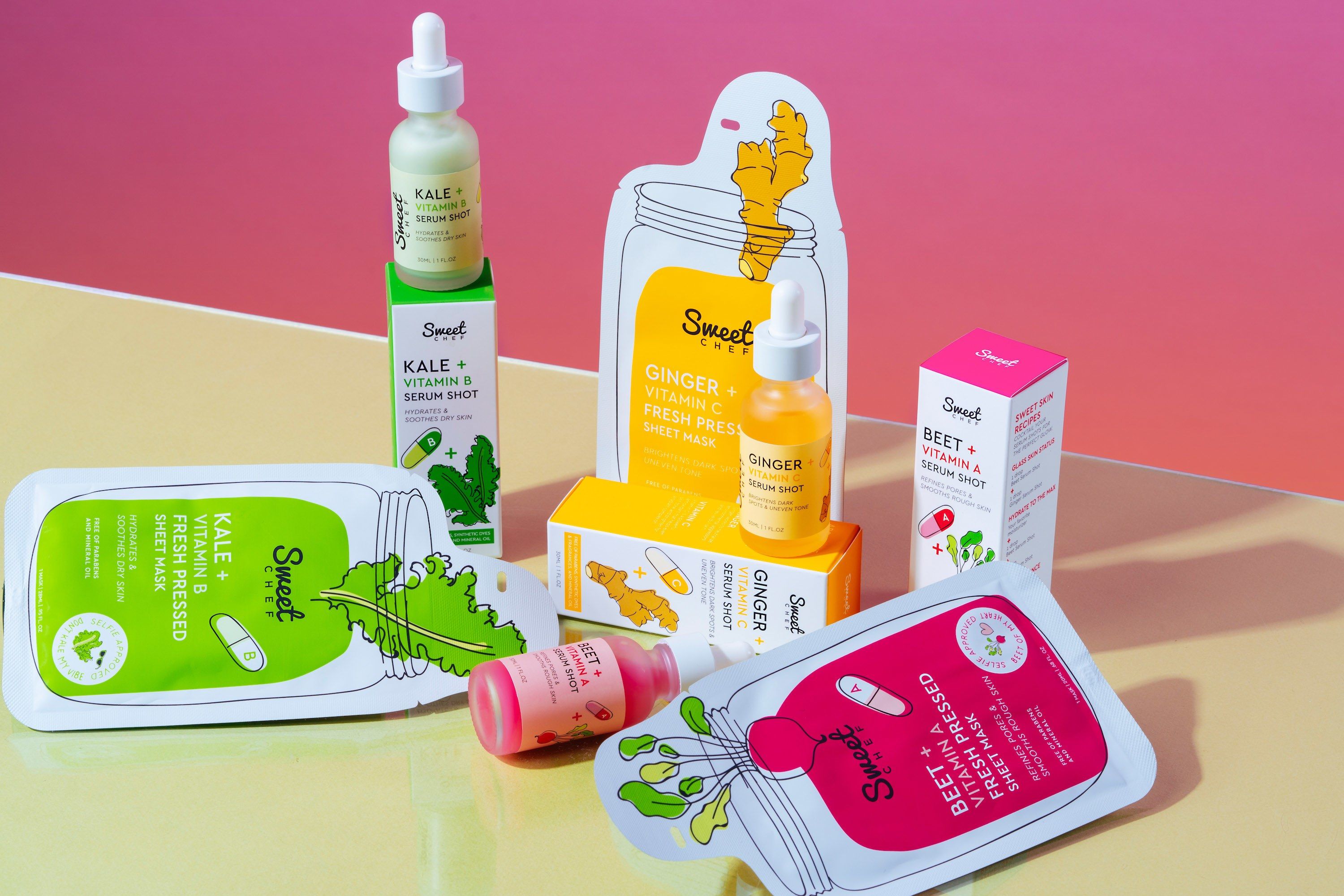

Die cutting involves using a metal blade (die) to cut precise shapes or windows into the Mylar film. While this process ensures uniformity and functionality, it inherently removes material, reducing the available surface area for printing.

Key Challenges

• Material Loss: The die-cut outline removes edges of the film, shrinking the printable area. For example, a rectangular die cut might reduce usable space by 5–15%, depending on the design.

• Edge Definition: Sharp corners or intricate shapes can complicate printing alignment, leading to ink bleeding or misregistration.

• Stretch and Distortion: Mylar’s slight stretch during die cutting may warp the film, affecting print accuracy.




2. Design Considerations for Maximizing Printable Area

To minimize the impact of die cutting on printing surface area, designers must balance aesthetics with practicality:

Strategies for Optimization

• Simplify Shapes: Avoid overly complex die cuts (e.g., curves with tight radii) that waste material. Opt for geometric patterns or straight lines.

• Strategic Window Placement: Position cutouts near edges to retain central printable areas. For instance, a die-cut window on the top flap preserves the main front for branding.

• Nested Layouts: Arrange multiple bags in a single sheet to reduce waste during cutting.

Example:

A luxury tea brand might use a die-cut handle shape on the top of a Mylar pouch. By placing the brand logo and text in the center (unaffected by the die cut), they maintain 80% of the printable area.

3. Material Behavior and Printing Limitations

Mylar’s properties influence how die cutting affects printability:

Material Constraints

• Stretch and Shrinkage: Post-cutting, Mylar may shrink or expand slightly, altering dimensions. Pre-testing with sample dies is critical.

• Ink Adhesion: Die-cut edges can create micro-tears, reducing ink grip. Use UV-curable or solvent-based inks for better durability.

Solutions

• Laser Die Cutting: More precise than traditional metal dies, reducing material waste and edge roughness.

• Pre-Treated Films: Coatings like clay or polymer layers enhance ink adhesion on cut edges.

4. Balancing Aesthetics and Functionality

Premium brands often face trade-offs between visual impact and die-cut efficiency:

Case Study: Luxury Chocolate Packaging

A high-end chocolate brand wanted a die-cut window to showcase the product. However, the initial design consumed 30% of the printable area. By switching to a laser-cut arched window and relocating the logo to the uncut bottom panel, they retained 90% of the surface for branding while maintaining transparency.

Pro Tip:

Use contrast colors near die-cut edges to draw attention away from printing limitations. For example, a gold foil accent along a cut line masks minor misalignment.

5. Production and Cost Implications

Die cutting impacts both print quality and manufacturing economics:

Cost Factors

• Tooling Costs: Complex dies increase upfront expenses but reduce per-unit costs for large batches.

• Material Waste: Intricate cuts raise material costs. Calculate yield rates (usable area per sheet) during design.

Workflow Adjustments

• Pre-Press Simulation: Use digital tools to visualize how die cuts interact with print layouts.

• Collaborate Early: Involve die-cutting teams in the design phase to avoid costly revisions.

6. Future Trends: Innovations in Die-Cut Mylar Printing

Advancements are addressing historical limitations:

• Digital Die Cutting: Eliminates physical tooling, allowing on-demand adjustments and reduced waste.

• Hybrid Films: Composite materials with reinforced edges improve printability while maintaining barrier properties.

Conclusion

Die cutting is unavoidable for functional Mylar bag designs but requires careful planning to preserve printing surface area. By prioritizing simplified shapes, strategic layout design, and material innovation, brands can achieve both aesthetic appeal and production efficiency. For businesses, the key lies in aligning die-cut strategies with packaging goals—whether enhancing brand visibility, ensuring product safety, or reducing costs.

By integrating technical expertise with creative problem-solving, manufacturers and designers can turn die-cutting challenges into opportunities for differentiation.
